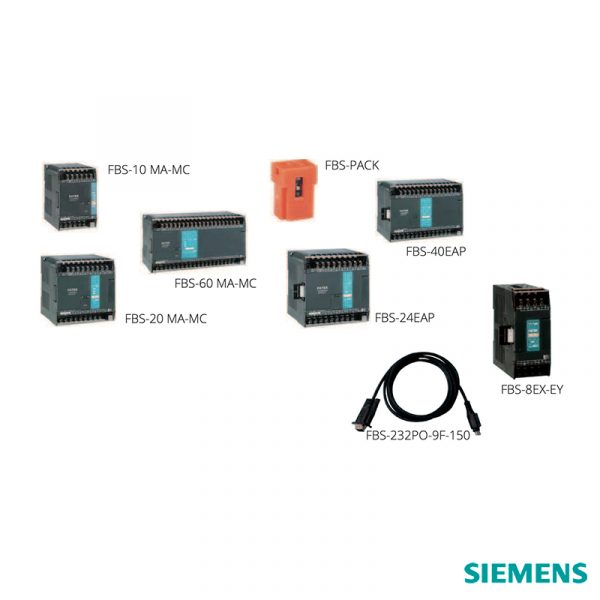

PLC MODULOS BASE
| Códigos | Nº de parte | Entradas PNP-NPN | Salidas RELE | Características | Expandible I/O | Puertos de Comunicación | |
|---|---|---|---|---|---|---|---|
| 101901 | 1000107 | FBS-10MA | 6 | 4 | 4 HSC(Total: 5KHz) | N | 1flS232(exp.a 3) |
| 101902 | 1000108 | FBS-14MA | 8 | 6 | 4 HSC(Total: 5KHz) | N | 1flS232(exp.a 3) |
| 101903 | 1000109 | FBS-20MA | 12 | 8 | 4 HSC(Total: 5KHz) | S | 1flS232(exp.a 3) |
| 101904 | 1000110 | FBS-24MA | 14 | 10 | 4 HSC(Total: 5KHz) | S | 1flS232(exp.a 3) |
| 101905 | 1000111 | FBS-40MA | 24 | 16 | 4 HSC(Total: 5KHz) | S | 1flS232(exp.a 3) |
| 101996 | 1001461 | FBS-60MA | 36 | 24 | 4 HSC(Total: 5KHz) | S | 1flS232(exp.a 3) |
| 101906 | 1000112 | FBS-10MC | 6 | 4 | 2-200KHz+ 2-20KHz, flTC | N | 1flS232(exp.a 5) |
| 101907 | 1000113 | FBS-20MC | 12 | 8 | 2-200KHz+ 4-20KHz,flTC | S | 1flS232(exp.a 5) |
| 101908 | 1000114 | FBS-24MC | 14 | 10 | 2-200KHz+ 6-20KHz,flTC | S | 1flS232(exp.a 5) |
| 101909 | 1000115 | FBS-40MC | 24 | 16 | 2-200KHz+ 6-20KHz,flTC | S | 1flS232(exp.a 5) |
| 101997 | 1001462 | FBS-60MC | 36 | 24 | 2-200KHz+ 6-20KHz,flTC | S | 1flS232(exp.a 5) |
| 101998 | 1001463 | FBS-20MCT | 12 | 8(Tr) | 2-200KHz+ 6-20KHz,flTC | S | 1flS232(exp.a 5) |
| 01001464 | 1001464 | FBS-20MN | 2IN-920 Khz/ 2 OUT – )”=Khz | S | 1flS232(exp.a 5) |
MEMORYPACK
| Codigo | N°de Parte | Descripción | |
|---|---|---|---|
| 1002194 | 1002194 | FBS-PACK | 10K Word Programa+ 20K Word datos |
MODULOS DE EXPANSION
| Códigos | Nº de parte | Entradas PNP-NPN | Salida RELE | Salidas Transistor | |
|---|---|---|---|---|---|
| 101910 | 1000116 | FBS-24EAP | 14 | 10 | |
| 101911 | 1000117 | FBS-40EAP | 24 | 16 | |
| 101912 | 1000118 | FBS-8EX | 8 | ||
| 101913 | 1000119 | FBS-8EY | 8 | ||
| 101914 | 1000120 | FBS-8EYT | 8 |
CABLES DE PROGRAMACION
| Codigo | N°de Parte | Descripción | |
|---|---|---|---|
| 1002991 | 1002991 | FBS-U2C-MD-180 | Cable de programación USB |
| 101925 | 1000131 | FBS-232PO-9F-150 | Cable de programación Serial |
| 101992 | 1001472 | JP-UA-A01 | Conversor RS232-USB |
MODULOS DE ENTRADA Y SALIDA ANALOGICA
TARJETAS DE ENTRADA Y SALIDA ANALOGICA MODULOS DE COMUNICACIÓN TARJETAS DE COMUNICACIÓN INSERTABLES TARJETAS DE COMUNICACIÓN INSERTABLES Alimentación: 24VDC MODULOS ESPECIALES
Código
N° de parte
Entradas
Salidas
Resolución
Señal
0101915
1000121
FBS-6AF
6
12 Bit
0-10 VDC; 0-20mA
0101916
1000122
FBS-2DA
2
14 Bit
0-10 VDC; 0-20mA
0101917
1000123
FBS-4DA
4
14 Bit
0-10 VDC; 0-20mA
0101918
1000124
FBS-4A2D
4
2
12/14 Bit
0-10 VDC; 0-20mA
Código
N° de parte
Entradas
Salidas
Resolución
Señal
0101915
1000121
FBS-6AF
6
12 Bit
0-10 VDC; 0-20mA
0101916
1000122
FBS-2DA
2
14 Bit
0-10 VDC; 0-20mA
0101917
1000123
FBS-4DA
4
14 Bit
0-10 VDC; 0-20mA
0101918
1000124
FBS-4A2D
4
2
12/14 Bit
0-10 VDC; 0-20mA

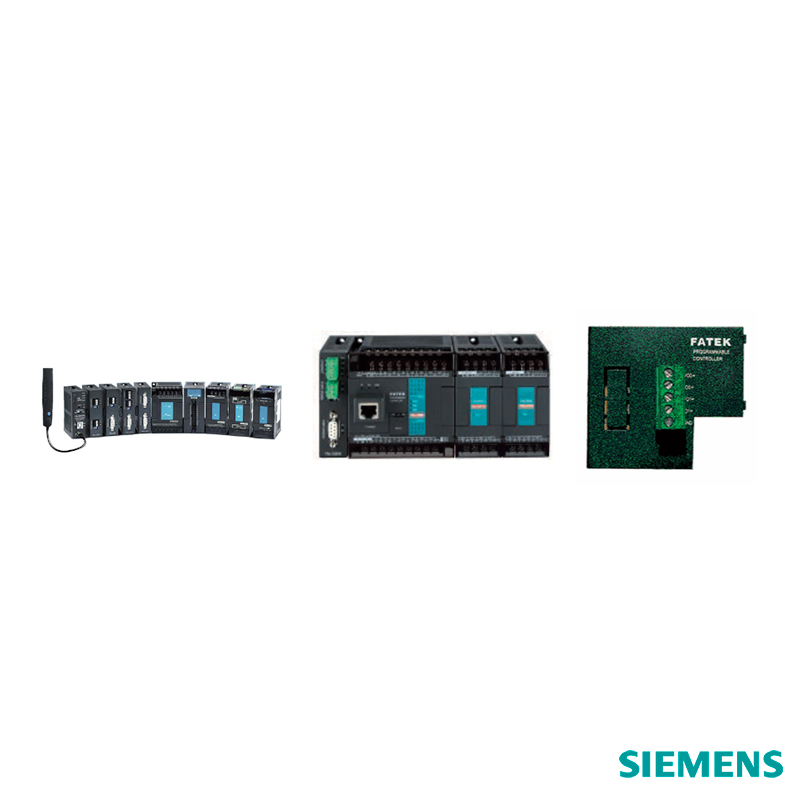

Código
N° de parte
Puerto
Standard
0101933
1001465
FBS-CM25
2
RS232+RS485
0101934
1001466
FBS-CM55
2
RS-485
0101392
1000138
FBS-CM25E
3
RS232+RS485+ETHERNET
0101936
1001467
FBS-CM25C
1
CONVERSOR RS232-RS485
0101937
1001468
FBS-CM5R
1
REPETIDOR RS-485
1002193
1002193
FBS-CMGSM
1
GPRS/GSM (INALÁMBRICO)
Código
N° de parte
Puerto
Standard
0101921
1000127
FBS-CB2
1
RS-232
0101922
1000128
FBS-CB22
2
RS-485
0101923
1000129
FBS-CBS
1
RS-485
1002190
1002190
FBS-CB55
2
RS-485
0101924
1000130
FBS-CB25
2
RS232+RS485
0101931
1000137
FBS-CBE
1
ETHERNET B10T
Código
N° de parte
Características
0101919
1000125
FBS-TC2
2 input TC (J,K,R): esolución (0.1°C)
1002191
1002191
FBS-TC6
6 input TC (J,K,R): Resolución (0.1°C)
1002565
1002565
FBS-TC16
16 input TC (J,K,R): Resolución (0.1°C)
0101920
1000126
FBS-RTD6
6 input TC (PT100): Resolución (0.1°C)
1002192
1002192
FBS-RTD16
16 input TC (PT100): Resolución (0.1°C)
Código
N° de parte
Características
1002228
1002228
FBS-VOM
Módulo de voz FBS-VOM
1002562
1002562
FBS-1LC
Módulo celda de carga
