NORGREN
ROTULA CILINDROS ISOLINE
RÓTULA DELANTERA PARA VÁSTAGO
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro ø FB |
TF | R |
|---|---|---|---|---|---|
| 2001016 | QA/8032/22 | Ø 32 | 7 | 64 | 32 |
| 2001017 | QA/8040/22 | Ø 40 | 9 | 72 | 36 |
| 2001018 | QA/8050/22 | Ø 50 | 9 | 90 | 45 |
| 2001019 | QA/8063/22 | Ø 63 | 9 | 100 | 50 |
| 2001020 | QA/8080/22 | Ø 80 | 12 | 126 | 63 |
| 2001021 | QA/8100/22 | Ø 100 | 14 | 150 | 75 |
| 2001022 | QM/8125/22 | Ø 125 | 16 | 180 | 90 |
| 2001023 | QM/8160/22 | Ø 160 | 18 | 230 | 115 |
| 2001159 | QM/8200/22 | Ø 200 | 22 | 270 | 135 |

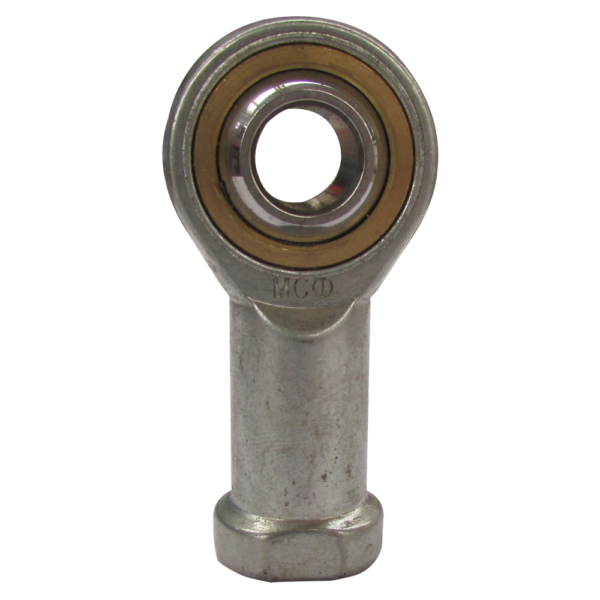

RÓTULA DELANTERA PARA VÁSTAGO
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro Pasador ø CN |
KK | CE |
|---|---|---|---|---|---|
| 2001062 | QM/8025/32 | Ø 32 | 10 | M10 x 1,25 | 43 |
| 2001063 | QM/8040/32 | Ø 40 | 12 | M12 x 1,25 | 50 |
| 2001069 | QM/8050/32 | Ø 50/63 | 16 | M16 x 1,5 | 64 |
| 2001070 | QM/8080/32 | Ø 80/100 | 20 | M20 x 1,5 | 77 |
| 2001071 | QM/8125/32 | Ø 125 | 30 | M27 x 2 | 110 |
| 2001166 | QM/8160/32 | Ø 160/200 | 35 | M36 x 2 | 125 |
RÓTULA DELANTERA PARA VÁSTAGO
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro Pasador ø CX |
DL | EX |
|---|---|---|---|---|---|
| 2001072 | QA/8032/33 | Ø 32 | 10 | 22 | 14 |
| 2001073 | QA/8040/33 | Ø 40 | 12 | 25 | 16 |
| 2001075 | QA/8050/33 | Ø 50 | 16 | 27 | 21 |
| 2001077 | QA/8063/33 | Ø 63 | 16 | 32 | 21 |
| 2001079 | QA/8080/33 | Ø 80 | 20 | 36 | 25 |
| 2001083 | QA/8100/33 | Ø 100 | 20 | 41 | 25 |
| 2001085 | QM/8125/33 | Ø 125 | 30 | 50 | 37 |
| – | QM/8160/33 | Ø 160 | 35 | 55 | 43 |
| – | QM/8200/33 | Ø 200 | 35 | 60 | 43 |
