TRUNNION AJUSTABLE

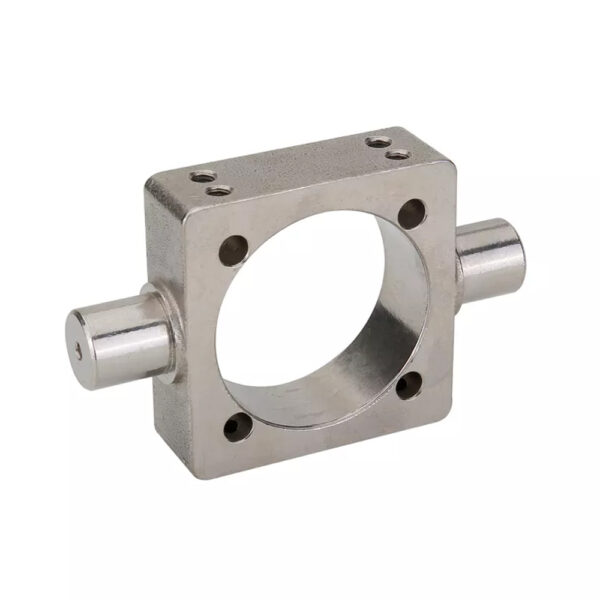

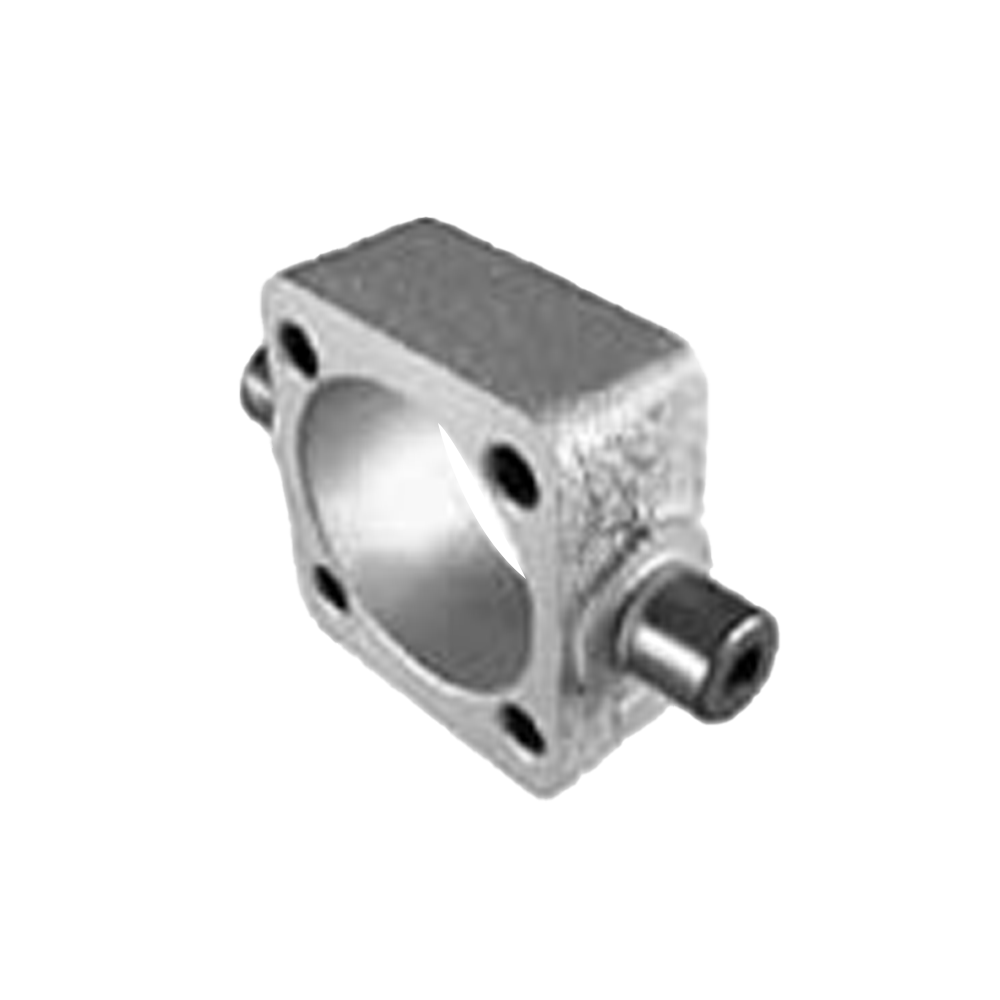

TRUNNION AJUSTABLE
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro ø TD |
TL | TM |
|---|---|---|---|---|---|
| 2001032 | QA/8032/40 | Ø 32 | 12 | 12 | 50 |
| 2001033 | QA/8040/40 | Ø 40 | 16 | 16 | 63 |
| 2001034 | QA/8050/40 | Ø 50 | 16 | 16 | 75 |
| 2001035 | QA/8063/40 | Ø 63 | 20 | 20 | 90 |
| 2001036 | QA/8080/40 | Ø 80 | 20 | 20 | 110 |
| 2001037 | QA/8100/40 | Ø 100 | 25 | 25 | 132 |
| 2001038 | QA/8125/40 | Ø 125 | 25 | 25 | 160 |
| – | QA/8160/40 | Ø 160 | 32 | 32 | 200 |
| – | QA/8200/40 | Ø 200 | 32 | 32 | 250 |
** Utilizado para el modelo de cilindro con cilindro redondo **
** QA es la versión actual de los antiguos PQA **

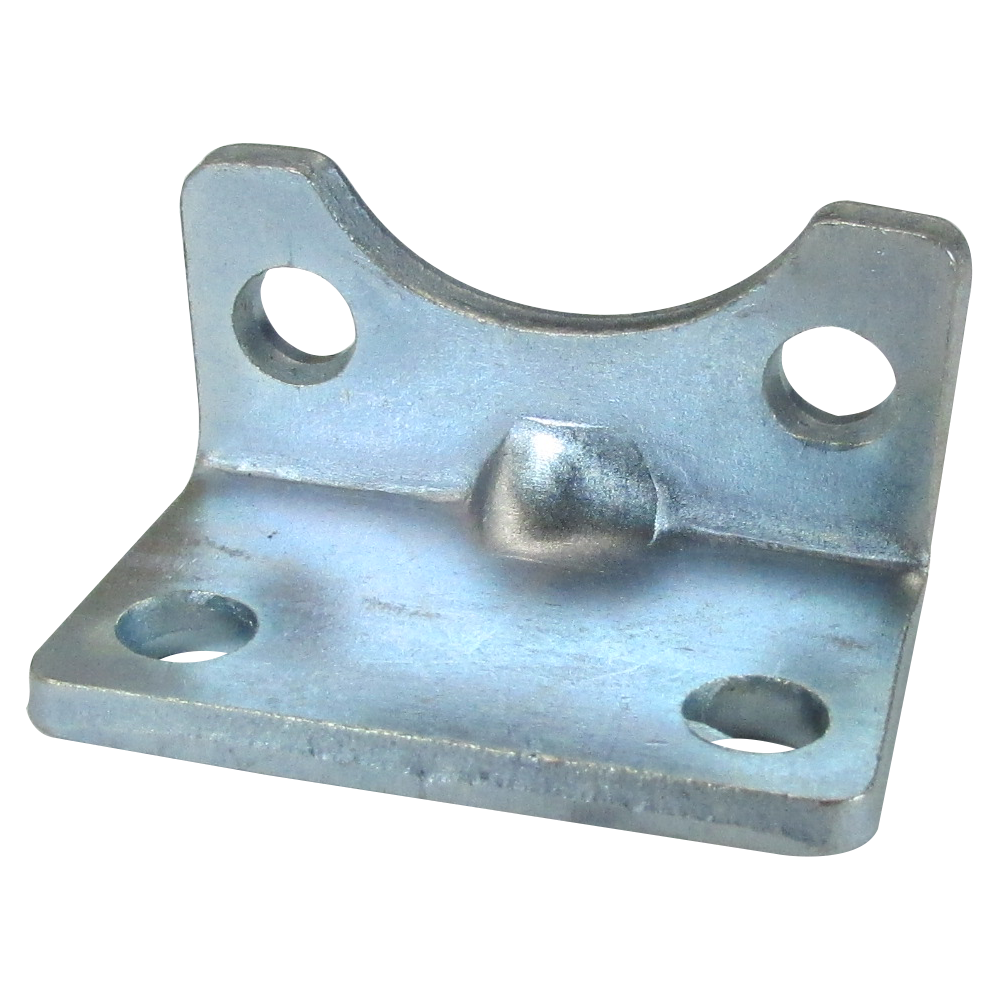

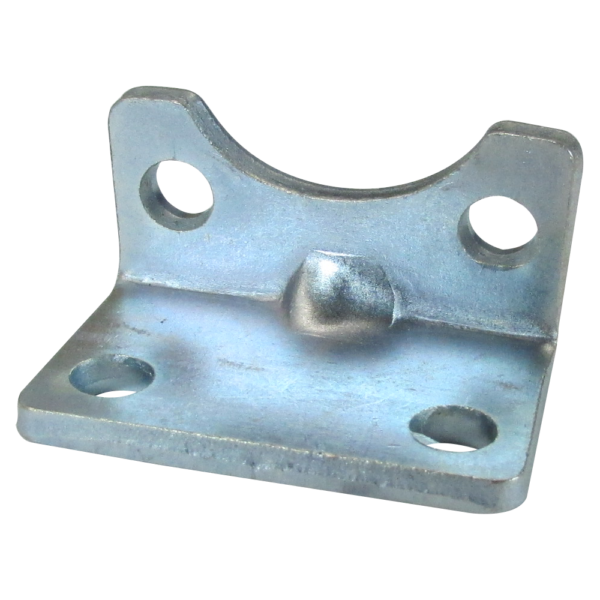

FIJACIÓN ANGULAR (PIE DE MONTAJE “C”)
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro ø AB |
TR | AU |
|---|---|---|---|---|---|
| 2000983 | QA/8032/21 | Ø 32 | 7 | 32 | 24 |
| 2000984 | QA/8040/21 | Ø 40 | 10 | 36 | 28 |
| 2000985 | QA/8050/21 | Ø 50 | 10 | 45 | 32 |
| 2000986 | QA/8063/21 | Ø 63 | 10 | 50 | 32 |
| 2000987 | QA/8080/21 | Ø 80 | 12 | 63 | 41 |
| 2000988 | QA/8100/21 | Ø 100 | 14,5 | 75 | 41 |
| 2000989 | QM/8125/21 | Ø 125 | 16,5 | 90 | 45 |
| 2000990 | QM/8160/21 | Ø 160 | 18,5 | 115 | 60 |
| 2000991 | QM/8200/21 | Ø 200 | 24 | 135 | 70 |
